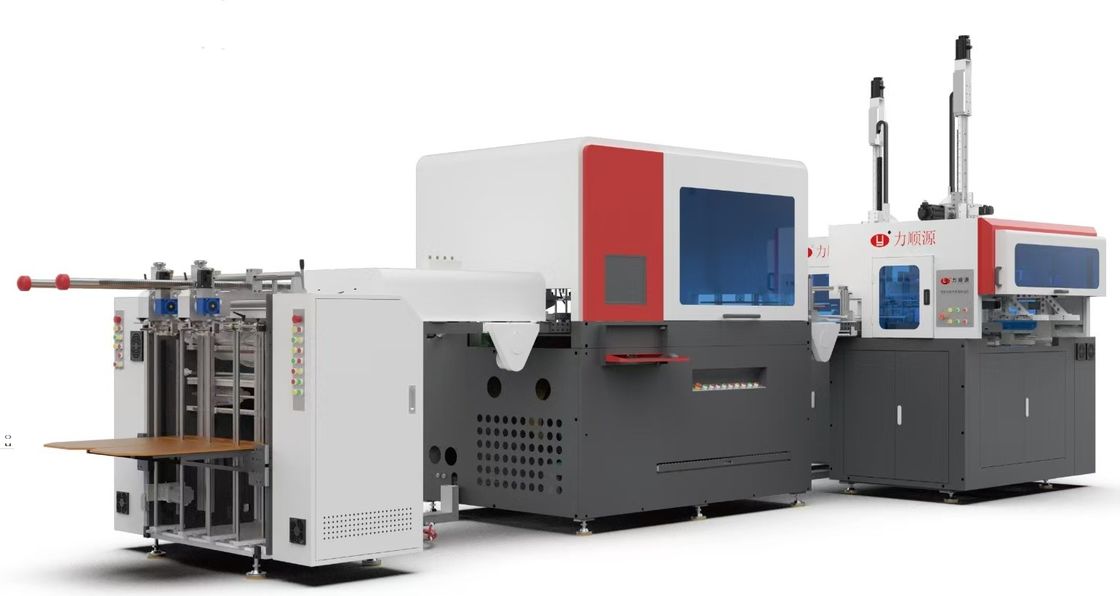

LY-HB 3000CZ Intelligent 2 in 1 Rigid Box Making Machine
LY-HB3000CZ Intelligent Integrated Top-Bottom Box(lntelligent 2 in 1 Rigid Box) Production Line,is developed and launched by Lishunyuan to meet the market demand after 2 years precipiaton with more than 10 years of design and production experiencein high-quality packaging machinery industry.
Key Features
- Shortest Change-over-time, thereby saving precious machine time
- Uses highly accurate Visual Robot arm positioning with German multiple camera system
- Dual Forming stations for high output
- Includes in-line Bubble pressing module
- Production speed up to 66 pcs/min for do one size production
- Positioning accuracy ±0.05mm
- Change-over-time (job transfer time) in 30 Minutes

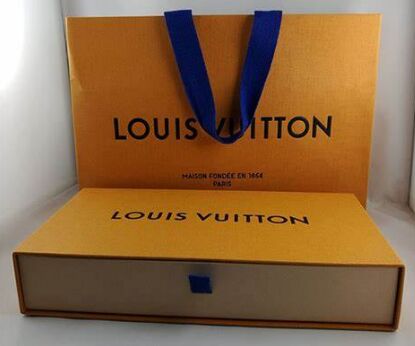

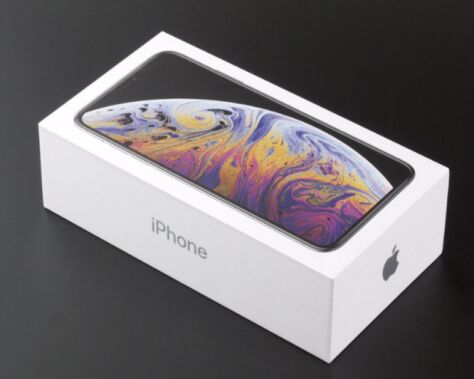

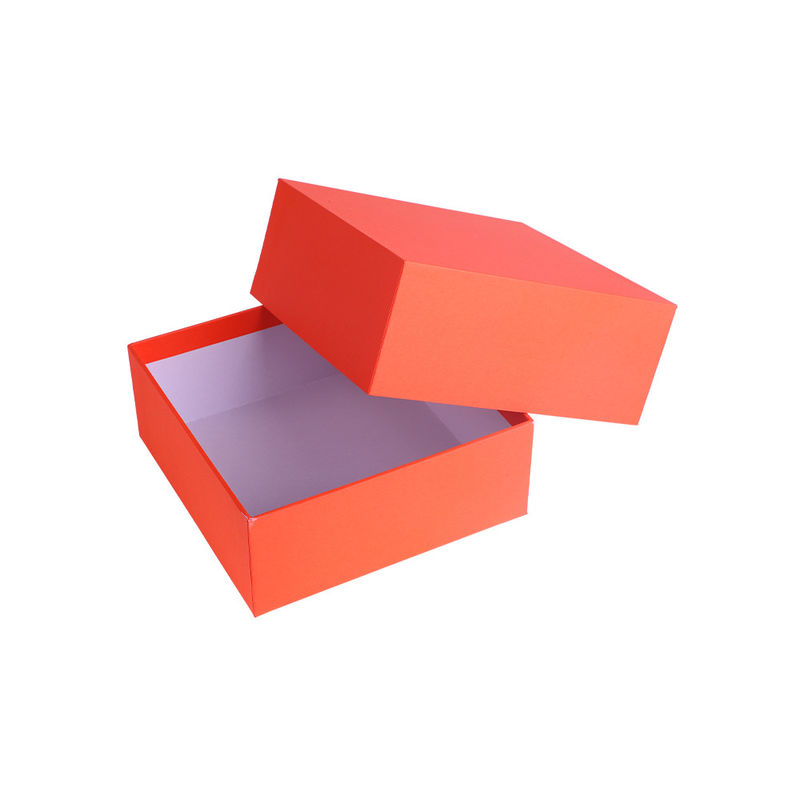

- Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
Excel cut consists of following sections:
| Feeder |
- Feeder is controlled by a servo motor
- Paper-feed-in overturn function
- Big diameter pneumatic vacuum control valves
- The rubber pressure roller for the feeding-in paper
- Antistatic platform for paper
- The automatic lifting function for feeding stack
- Feeding stack auto stop when top paper in position Feeder control by servo motor
- Independent controlled paper feeding table and independently controlled sheet roller
- Avoid the inconsistency of the length of the paper between the two sheets
|
|
Positioning
|
- YAMAHA Robot Arm for spotting the box
- German Balser camera with Japanese Lens in 10 million Pixel tracing system
- 4 Cameras with double robots arms working XY Spool for positioning
|
|
Forming Part & Bubble Pressing
|
- Automatic Setting by servo motors
- Dual Station smart wrapper for increased production
- Virtual cam servo driving system
- Alarm device for collision detection
- Lift the box by holding the side of the box
- Scratch resistant for the paper
- Box-pressing down-side device
|
|
Electric Control System
|
- Automatic control by servo motors for stable operations
- Transfer mold fast, quick adjust machine
|
Technical Parameters
| Paper size(A*B) |
single sides |
double sides |
| W :60-420mm |
W :60-420mm |
| L :120-700mm |
L :120-700mm |
| Paper thickness |
80-300g/m2 |
| Greyboard thickness |
1-3mm |
| Finished box size(W*L*H) |
L: 55-450mm |
L :55-450mm |
| W:55-300mm |
W :55-300mm |
| H:12-160mm |
H :12-160mm |
| Precision accuracy |
±0.05mm |
| Paper atacking height |
800mm |
| Air Pressure |
0.5-0.7mpa/min |
| Max power |
37KW |
| Capacity of production |
50-70 PCS/MIN |
25-35 Pairs/MIN |
| Power Supply |
380V/50Hz |
| Glue tank volume |
50KG |
| Machine dimension |
L8100×W6500×H3200mm |
| Machine weight |
7200kg |
Process Flow
Packing and Shipping
Company Profile
Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.
Our Services & Strengths
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.
Certifications
Manufacturing Workshop
Industry Exhibitions
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
