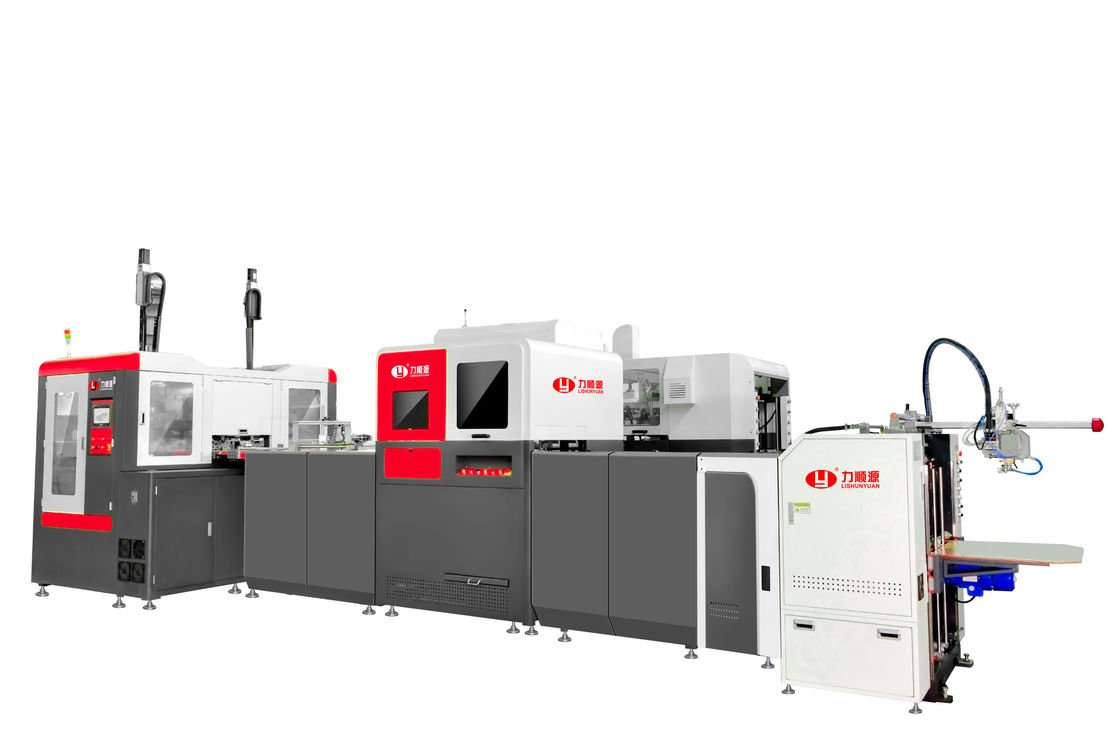

Automatic Intelligent High-production Rigid Box making Line suitable for the rigid boxes
Description
The Features of LY-HB2500CK: Automation, Infprmationization, intelligentization&IOT fuctions(Real-time monitoring of facility’s running state, parameters and the consupmtion of gas and power). Suitable for the production of rigid boxes like smartphone boxes, makeup boxes, jewery boxes and wine boxes.
Features
1. The World’s shortest Change-over-time, thereby saving precious machine time
2. Uses highly accurate Visual Robot arm positioning with German multiple camera system
3. Dual Forming stations for high output
4. Includes in-line Bubble pressing module
5. Production speed:35- 45pcs/min
6. Positioning accuracy ±0.1 mm
7. Fast for job changeover with memory function, Changeover time (job transfer time) of less than 10 Minutes
8. Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
9. Don’t need to change the blade and pressing board.
10. Easy operation , fast and convenience.
Parameters
| Paper Size |
W:95 - 600mm |
| |
L: 120-880mm |
| Paper thickness |
80-300g/m2 |
| Max.paper stacking height |
800mm |
| Cardboard thickness |
1-3mm |
| Finished box size W*L*H |
L:45-350mm |
| |
W:45-250mm |
| |
H:15-120mm |
| Ear overlapping size |
15-120mm |
| Folding size |
7-100mm |
| Production speed |
35-45pcs/min |
| Setting time |
10-15mins |
| Precision |
±0.1mm |
| Power Supply |
380V/50Hz |
| Max power |
37kw |
| Max power(with bubble pressing machine) |
43kw |
| Air pressure |
0.5-0.7mpa/320NL/min |
| Glue tank volume |
30kg |
| Machine weight |
7500kg |
| Machine weight (with bubble pressing machine) |
9100kg |
| Machine size |
L8000*W4000*H3300mm |
| Machine size (with bubble pressing machine) |
L11600*W4000*3300mm |
Sample Boxes
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 17 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
