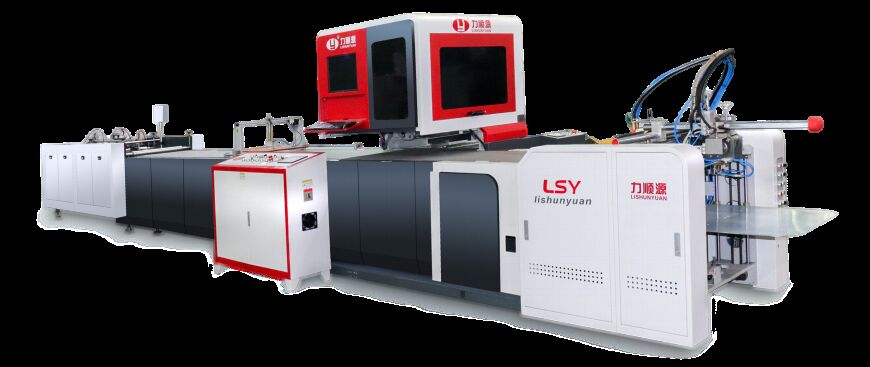

LY-4510C-PK Automatic Hardcover Making Machine ( Visual positioning )
The LY-4510C-PK is a fully automatic hardcover making machine with advanced visual positioning technology. It integrates two high-precision 10-megapixel cameras and a YAMAHA robot arm, achieving a positioning accuracy of ±0.05mm. The machine is capable of producing rigid boxes, hard covers (case maker), and linings either separately or simultaneously, with a production speed of 15–30 pieces per minute. Its modular servo-driven feeding system prevents double sheets and misalignment, while the glue circulation and heating systems ensure consistent adhesive application and easy cleaning.
Equipped with independent servo motors for feeding, rolling, and conveying, the LY-4510C-PK offers strong coordination and reduced setup time. The folding section features belt and servo-controlled wrapping for precise edge alignment without gaps. Key technical parameters include a paper size range of 120–1100mm (L) × 95–600mm (W), cardboard thickness of 1–3mm, and a machine footprint of 9500×2550×2000mm. With over 200 process patents and 100 quality certifications behind its 5th-generation design, this machine delivers reliable, high-precision production for the rigid box and hardcover industry.
Key Features
- Independent control by different servo motor for feeding, avert double sheet and incline.
- Within 2 sets of high precision cameras and YAMAHA robot arm, Positioning accuracy of ± 0.05mm. YAMAHA robot arm are adopted to accurate position all kinds of product , such like hardcover maker, lining,etc.
- Able to production Rigid Box and Hard Cover(Case Maker) and lining.
- Able to production box and case at the same time, Capacity up to15-30 PCS/Min.
- Easy to setup enhance productivity and increase enterprise profit.
Excel cut consists of following sections:
| Feeder |
- Structure of printer’s cam gear. Catching up one piece of paper first and blowing it into the roller, reducing the defective percentage.
- (1) Adopted a circulatory system that is suitable for hot & white glue to avoid splashing glue and reduce your clean time, making the machine working stabilized; (2) Adopted a heating system that heating at regular time and constant temperature to avoid waiting time; (3) With blender(beater) inside, which can stir the glue evenly to ensure the same viscosity of the glue on paper and reduce defective percentage caused by inferior glue;
- The feeder, roller, conveyor belt have their own servo motor and work as a whole with a strong coordination and stability, which can reduce debugging time, enhance productivity and increase enterprise profit.
- The gluing roller is made of medium carbon steel with its surface covered by 304 stainless steel, making your machine much more durable and very easy to be cleaned, which can help you reduce the maintenance cost.
|
|
Positioning
|
- Japan Yamaha Robot Arm for spotting the grey board box.
- Two cameras with Lens in 10million Pixel tracing system.
- Double Camera with XY Spool for positioning.
- Positioning accuracy in 0.01mm.
|
|
Pressing
|
- Multiple robot suck arm able to pick from max size : L840MM W:430MM
- Storage area with two system for feeding board . bottom push and suck push to avoid scratch.
|
| Folding |
- First length side using belt folding.
- Utilizing multiple pressure rollers and a double-layer belt for guidance and compression.
- Ensuring materials are properly aligned and fed without edge gaps or material spillage! Resulting in a denser, more compact finished product.
|
|
|
- Width side using servo control ,easy to setup .
- Timing belt drive ensures synchronized positioning .
- Corner pressing rollers pre-compress edges prior to folding the short edges.
|
|
|
- Short side using pneumatic edge wrapping, ensure not gap on the side.
- Length side suing digital setup on the touch screen , easy setup for change new job.
|
Technical Specification
|
Model
|
LY-4510C-PK |
|
Paper size(L*W)
|
L:120-1100mm W:95-600mm |
|
Size for cover and lining(L*W)
|
L:120-1050mm W:100-500mm |
|
Paper thickness
|
80-300g/㎡ |
|
Maximum pieces of board
|
6 pcs |
|
Minimum spin size
|
30mm |
|
Minimum side board size
|
25mm |
|
Precision accuracy
|
±0.05mm |
|
Speed
|
15-30 sheets/min |
|
Cardboard thickness
|
1-3mm |
|
Power supply
|
380V/220V/50Hz/3phases |
|
Glue tank capacity
|
30kg |
|
Constant power
|
11.5kw |
|
Machine size
|
L9500×W2550×H2000mm |
|
Machine weight
|
3100kg |
Process Flow
For cover and lining:
Packing and Shipping
Company Profile
Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.
Our Services & Strengths
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.
Certifications
Manufacturing Workshop
Industry Exhibitions
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
